Tailvise Mechanism and Workbench
This massive carver's style workbench tail vise mechanism is available for purchase. It comes with a Czech-made Acme threaded bench screw, guide bars, mounting plate, dial in jaw adjustment nuts, guide plate and mounting fasteners. The tail vise jaw, vise handle, leather shock washers and a workbench construction drawing are also available for purchase. Inquire below.

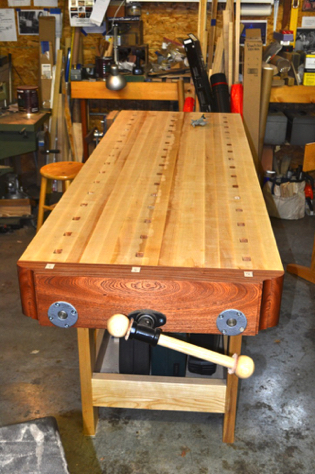

The USS Hornet Workbench

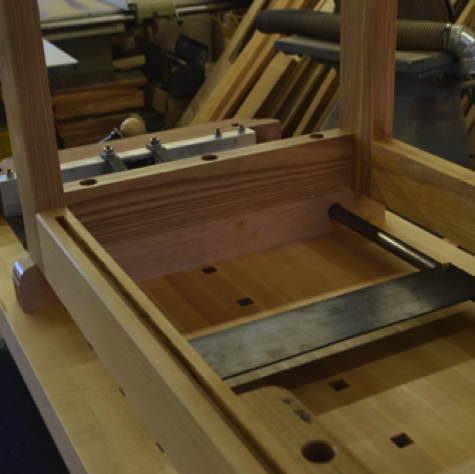

Tailvise jaw, adjustment nut/ washer, the bench screw and the guide mechanism mounted below the bench.
The tailvise guide rails pierce the workbench base allowing great adjustment and are stiffened by a plate.

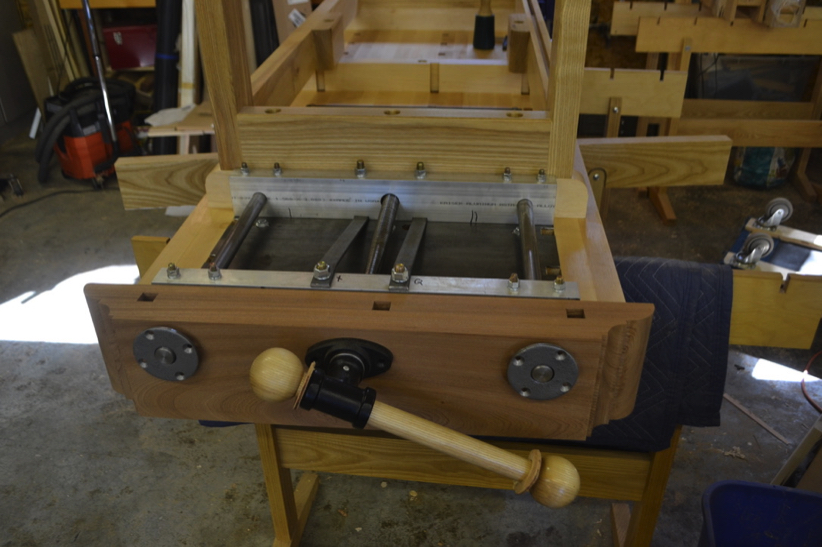

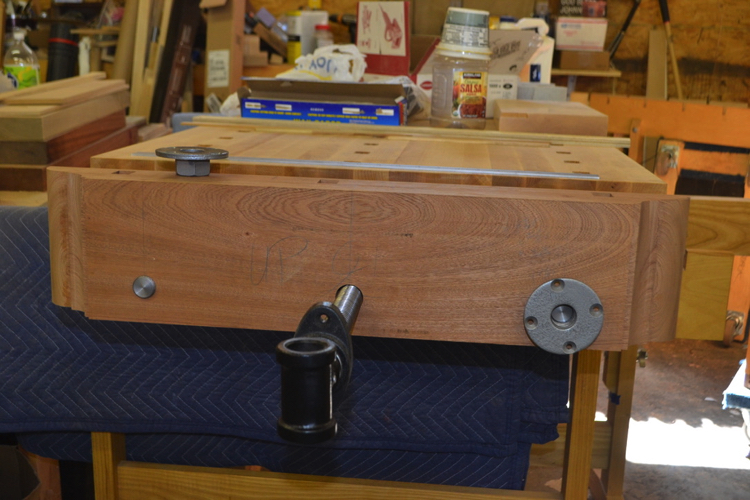

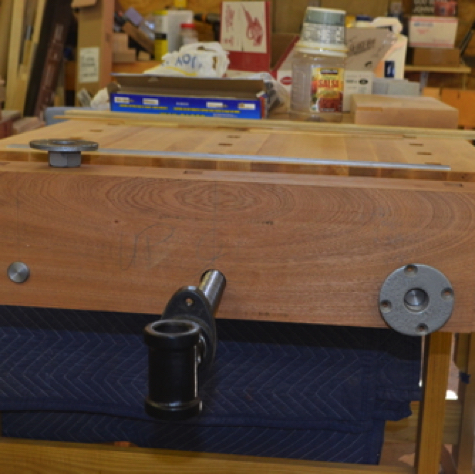

Tailvise jaw fitting: the nut/ washers are left and right of the Czech screw and parallel the jaw to the end of the bench.

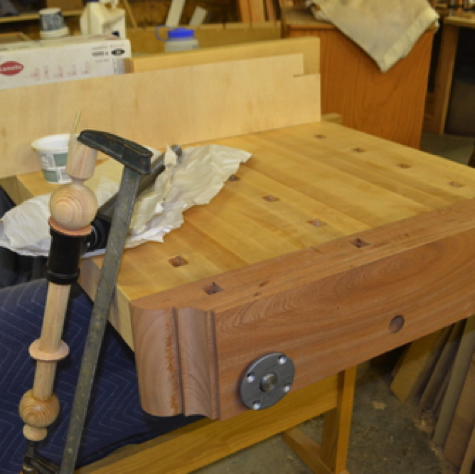

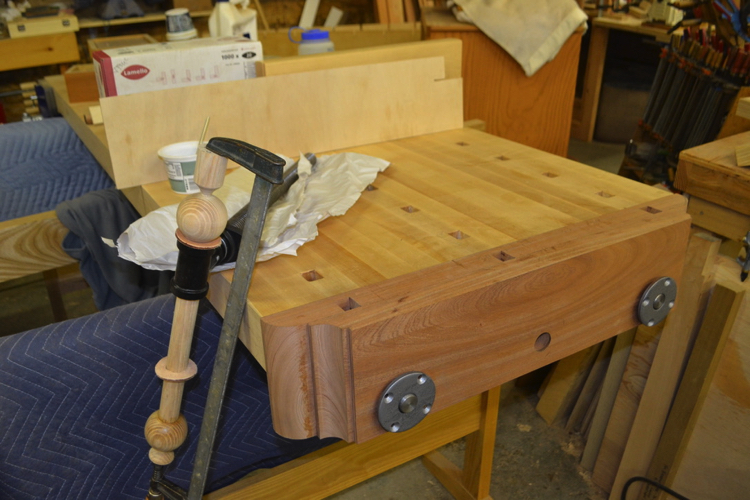

Tailvise jaw adjustment, assembling the vise handle & leather shock washers.

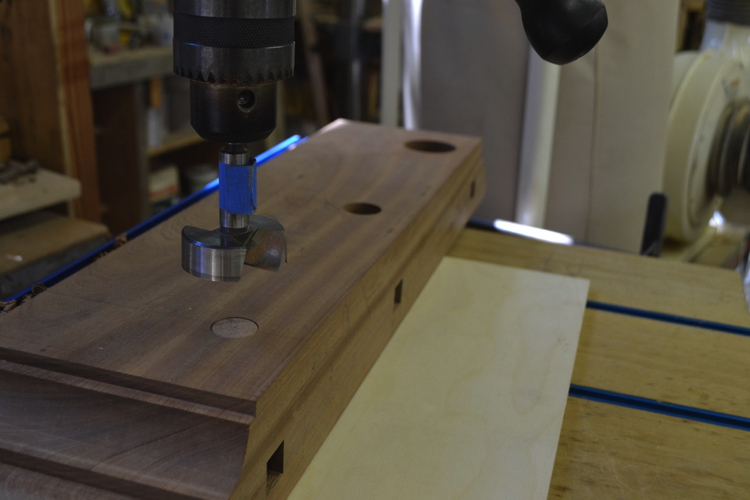

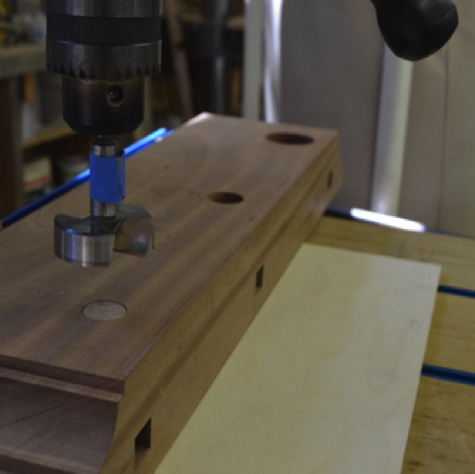

Counterboring vise jaw for nut.

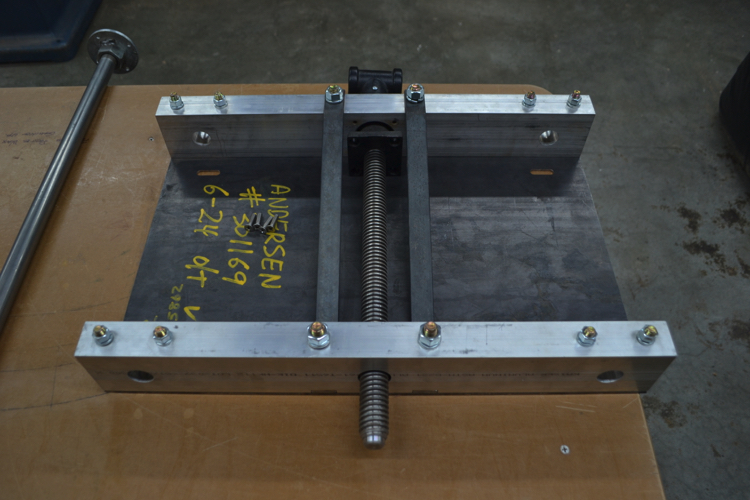

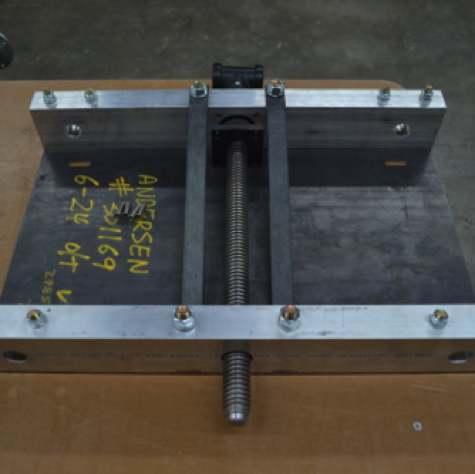

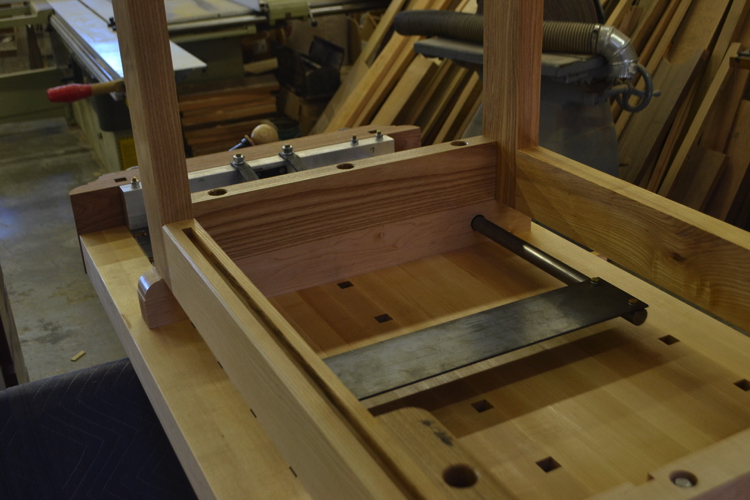

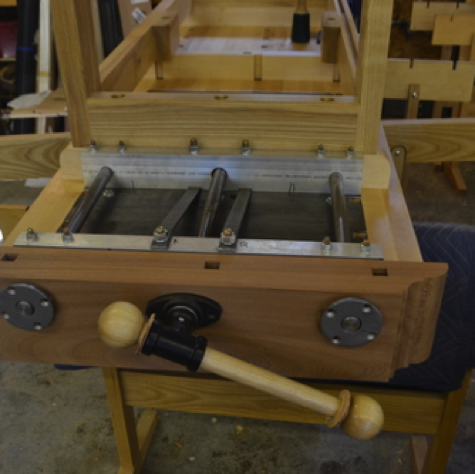

Tailvise mechanism from above.

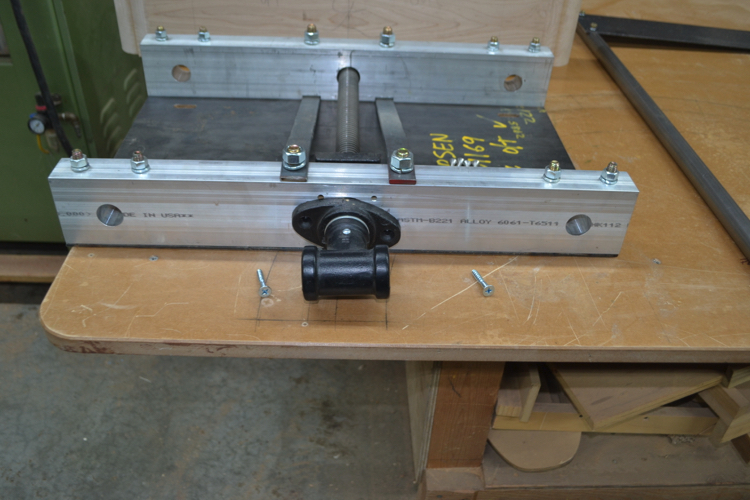

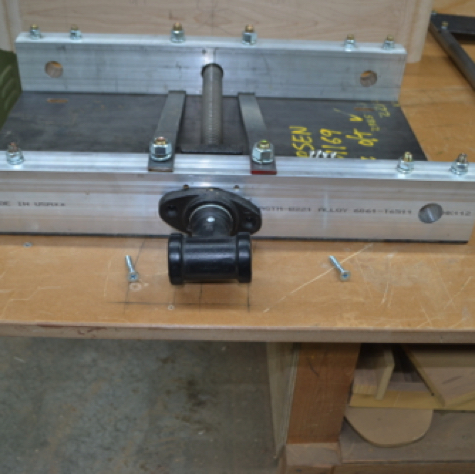

Mechanism.

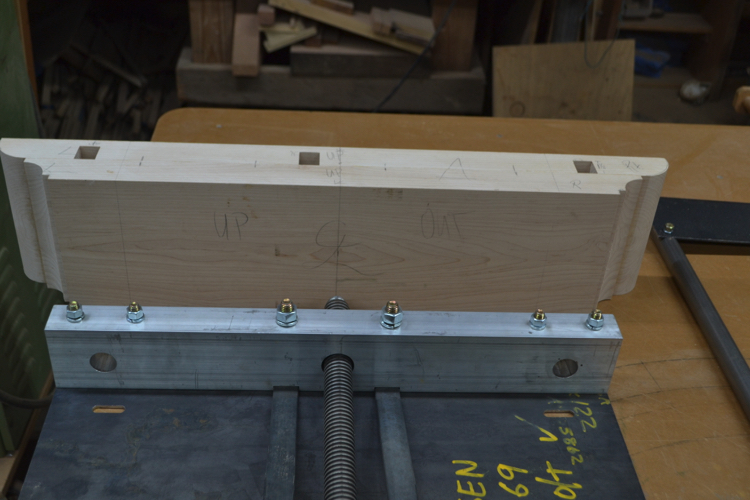

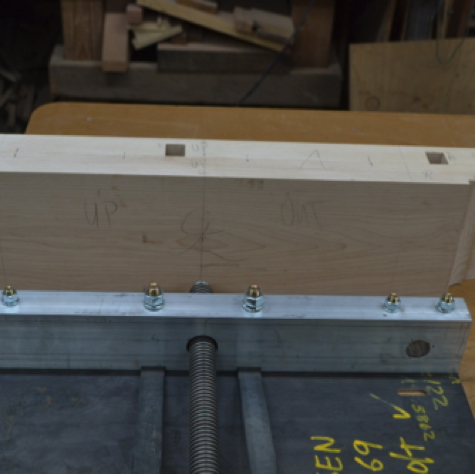

Tail vise jaw centered to mechanism.

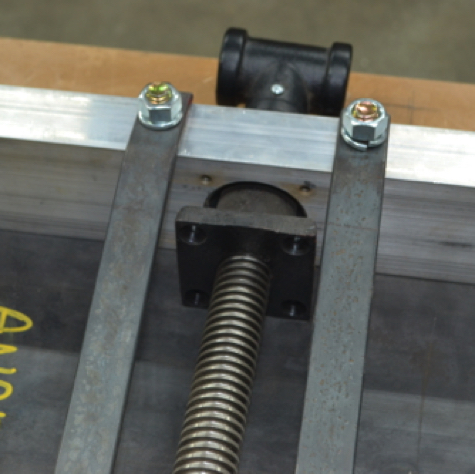

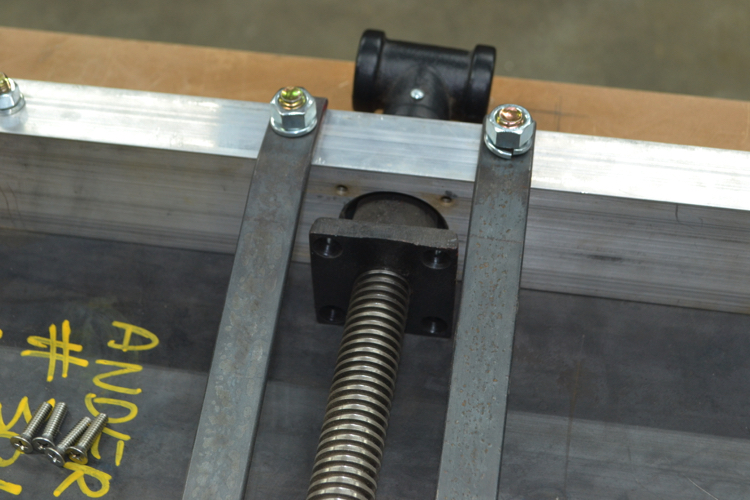

Czech bench screw mounting holes.

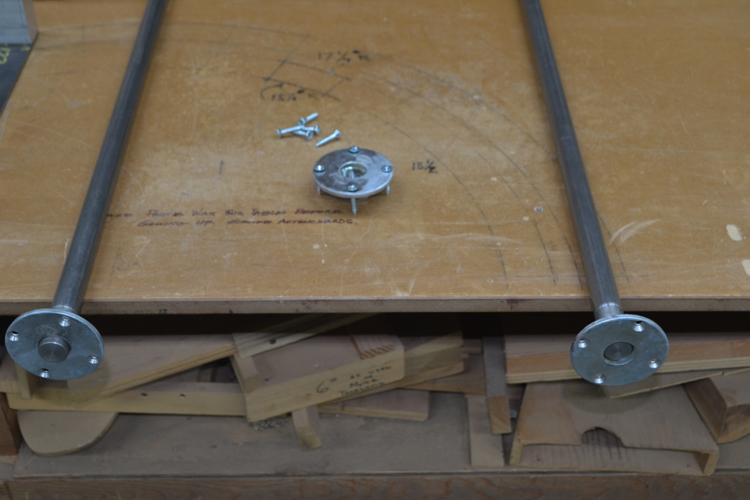

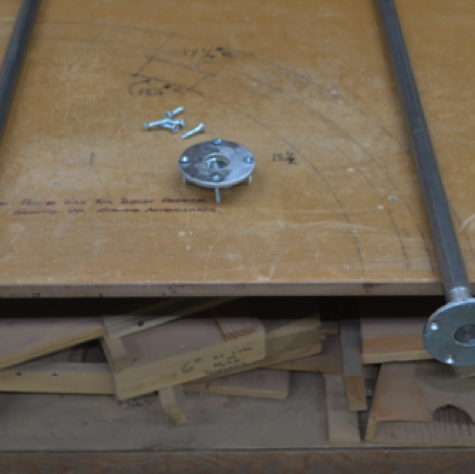

Guide rods and washer-nuts.

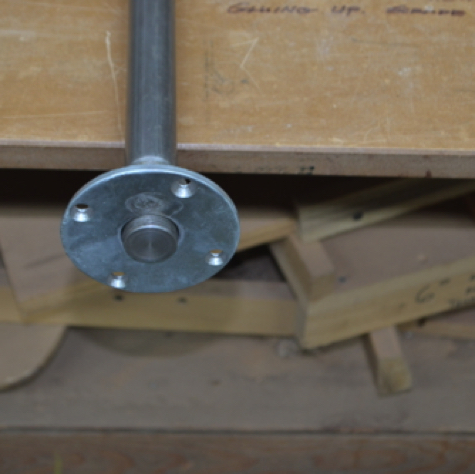

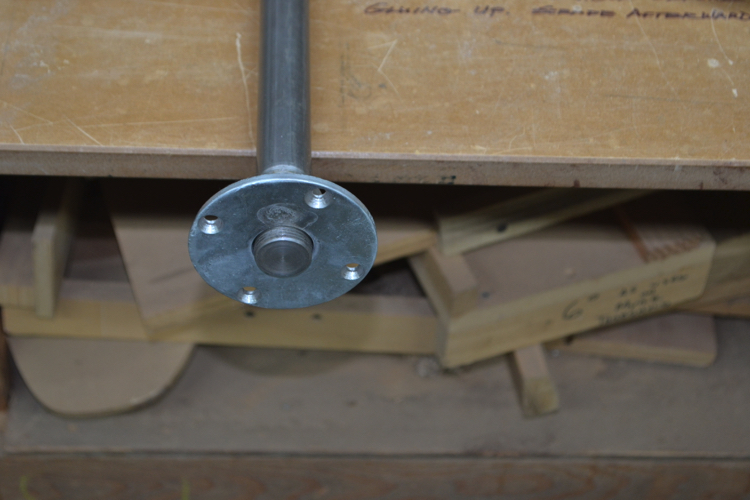

Washer-nut adjusts on guide rod.

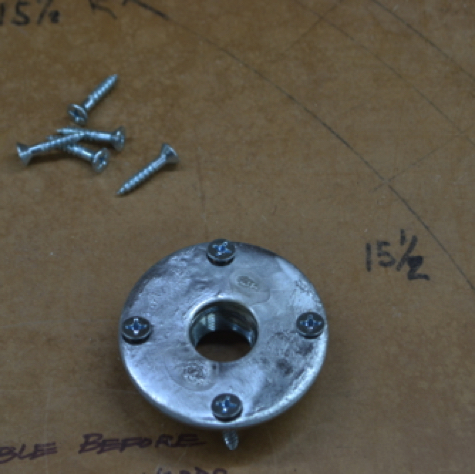

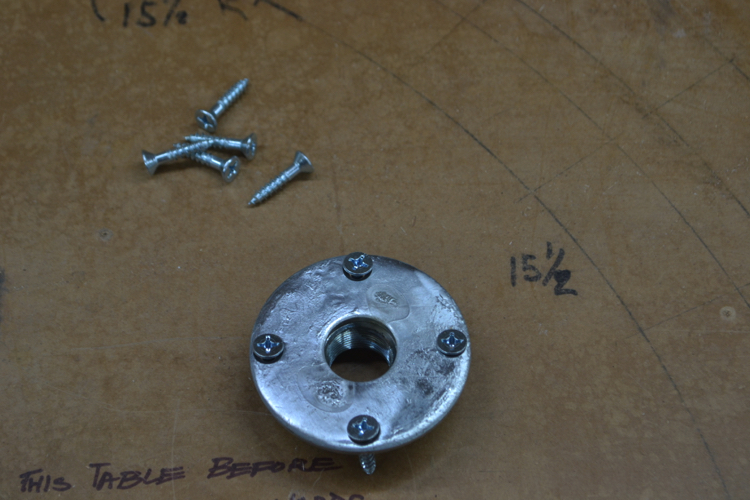

Washer-nut and mounting screws.

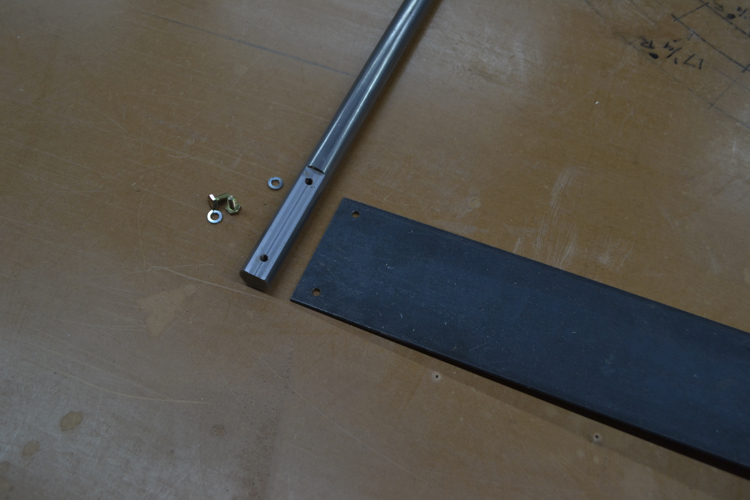

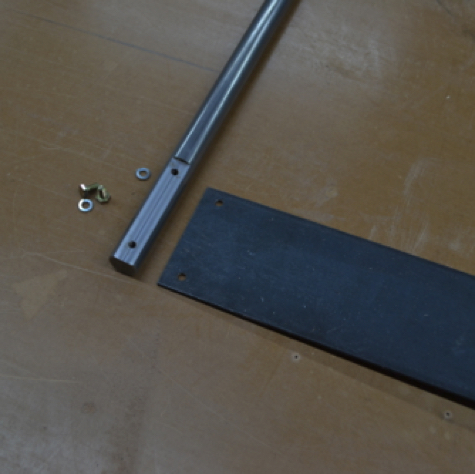

Stiffening plate mounts on guide rod flat.

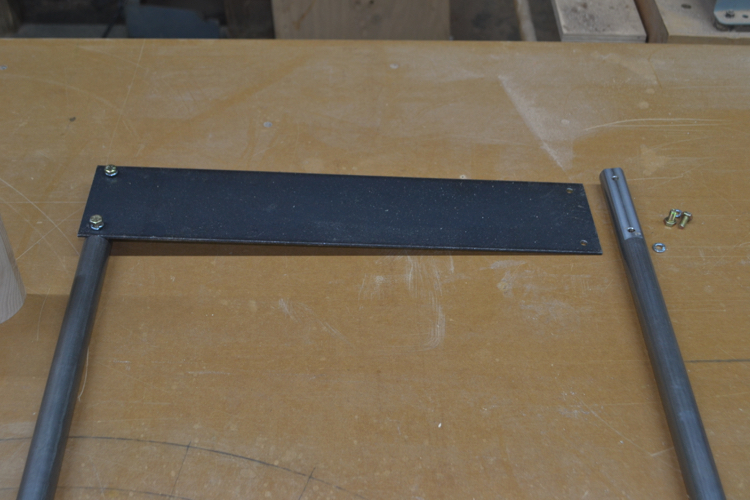

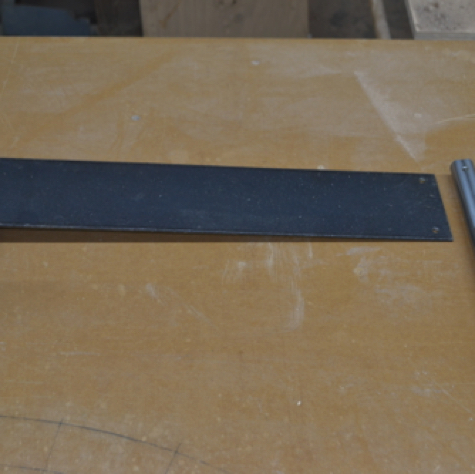

Stiffening plate fastened to guide rod.
